Short Description

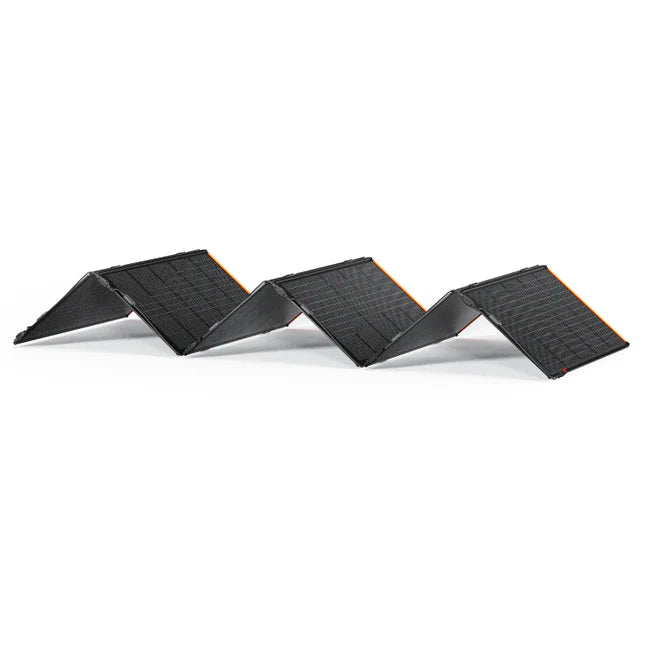

The Jackery SolarSaga 500W Solar Panel is Jackery’s most powerful portable solar solution, engineered for maximum efficiency and durability. With IP68 waterproofing, high conversion efficiency, and a rugged design, it’s built to keep large power stations charged during extended outages or full off-grid setups.
Teaching Note

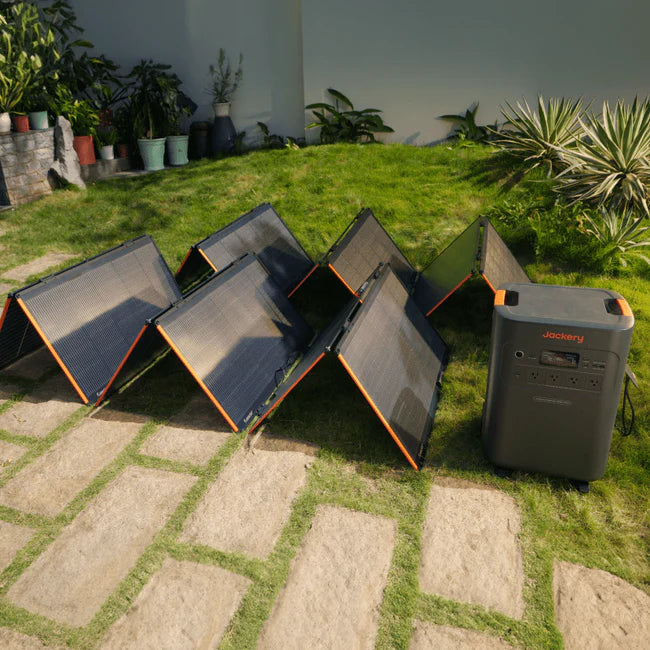

The SolarSaga 500W isn’t just a bigger panel — it’s a high-efficiency, bifacial solar module designed for serious users. With up to 545W under optimal conditions and advanced weather resistance, it’s the perfect match for Jackery’s high-capacity power stations like the Explorer 3000 Pro and HP3600 Plus.
| Spec | Details |
|---|---|
| Model | SolarSaga 500W |
| Rated Power (STC) | 500W ± 5% |
| Peak Power (BNPI) | 545W ± 5% |
| Cell Type | Monocrystalline, bifacial |
| Efficiency | Up to ~24% |
| Compatibility | Optimized for Explorer 2000 Plus, 3000 Pro, HP3600 Plus |
| Maximum System Voltage | 600V DC |
| Maximum Reverse Current | 15A |
| Voltage Temp. Coefficient | -0.26% / °C |
| Power Temp. Coefficient | -0.32% / °C |
| Open Circuit Voltage (Voc) | 48.5V ± 5% (BNPI: 49.2V ± 5%) |
| Power Voltage (Vmp) | 41.7V ± 5% (BNPI: 42.5V ± 5%) |
| Power Current (Imp) | 12.0A ± 5% (BNPI: 12.84A ± 5%) |
| Short Circuit Current (Isc) | 13.02A ± 5% (BNPI: 13.86A ± 5%) |
| Waterproof Rating | IP68 |
| Operating Temperature | -40°F to 185°F (-40°C to 85°C) |
| Durability | ETFE coating, bifacial design, splash-proof |
| Protection Class | Class II (electric shock protection) |
| Warranty | 5 Years |
| Weight | 22.05 ± 2.20 lbs (10.5 ± 0.5 kg) |
