Short Description

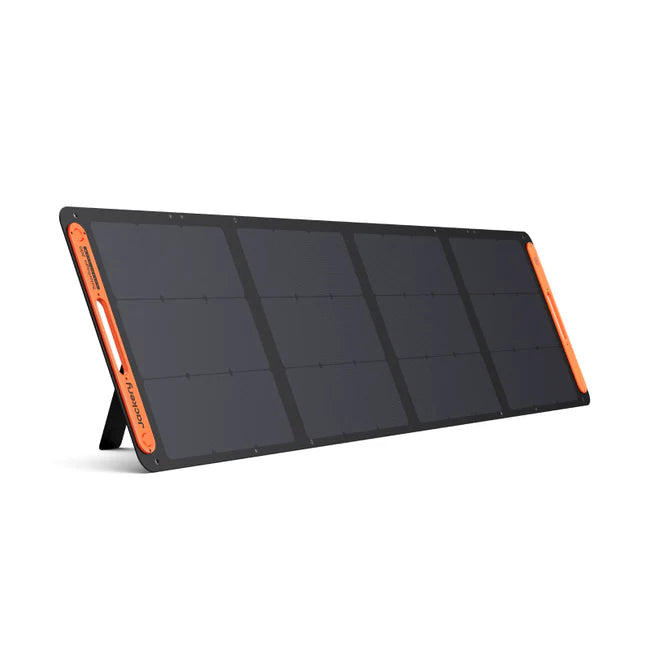

The Jackery SolarSaga 200W Solar Panel is a high-efficiency, foldable panel designed for outdoor, RV, and home emergency use. Lightweight yet powerful, it provides fast solar recharging for Jackery’s portable power stations while remaining easy to carry and set up.
Teaching Note
The SolarSaga 200W strikes the balance between portability and charging power. It’s light enough to take camping but strong enough to keep mid-range stations like the Explorer 1000 Plus and 2000 Plus charged efficiently. With IP68 waterproofing and USB outputs, it doubles as a direct charger for smaller devices on the go.
| Spec | Details |
|---|---|
| Model | SolarSaga 200W |
| Rated Power (STC) | 200W ± 5% |
| Peak Power (BNPI) | 208W ± 5% |
| Cell Type | Monocrystalline, bifacial |
| Efficiency | Up to ~24% |
| Compatibility | Works with Explorer 300 Plus, 500, 1000 Plus, 2000 Plus, 3000 Pro, HP3600 Plus |
| Maximum System Voltage | 60V DC |
| Maximum Reverse Current | 15A |
| Voltage Temp. Coefficient | -0.268% / °C |
| Power Temp. Coefficient | -0.29% / °C |
| Open Circuit Voltage (Voc) | 24.8V ± 5% (BNPI: 25V ± 5%) |
| Power Voltage (Vmp) | 20V ± 5% (BNPI: 20.2V ± 5%) |
| Power Current (Imp) | 10A ± 5% (BNPI: 10.3A ± 5%) |
| Short Circuit Current (Isc) | 11.2A ± 5% (BNPI: 11.4A ± 5%) |
| USB Outputs | USB-A: 5V⎓2.4A |
| Waterproof Rating | IP68 |
| Operating Temperature | -4°F to 149°F (-20°C to 65°C) |
| Durability | Rugged ETFE coating, splash-proof |
| Protection Class | Class II (electric shock protection) |
| Warranty | 3 + 2 Years |
| Weight | 13.67 ± 0.66 lbs (6.2 ± 0.3 kg) |

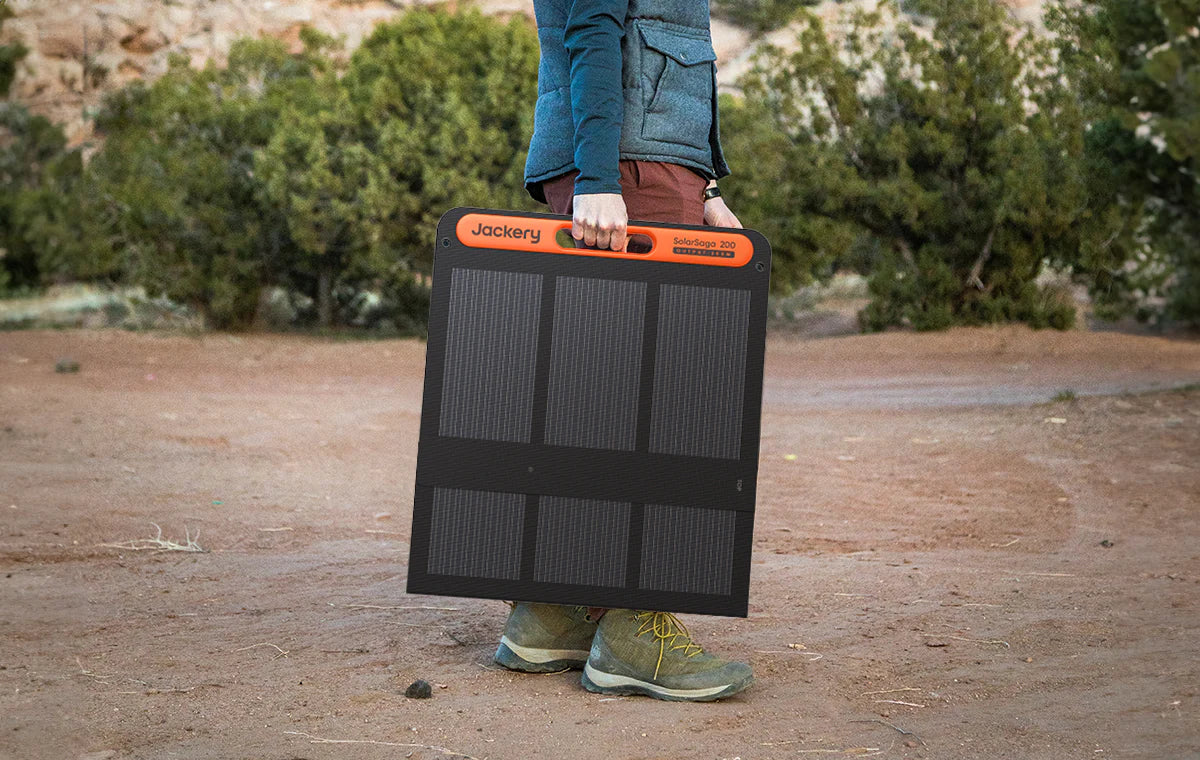

| Dimensions (Folded) | 24.2 × 21.7 × 1.6 in (615 × 552 × 40 mm) |
| Dimensions (Unfolded) | 92.1 × 21.7 × 1.0 in (2340 × 552 × 25 mm) |
