Short Description
The Jackery Explorer 5000 Plus is a next-generation modular power station, delivering 5kWh of storage and 3000W of AC output. Built for serious home backup, RV setups, and off-grid living, it integrates seamlessly with Jackery’s 5000 Plus Battery Packs for scalable power.
Teaching Note

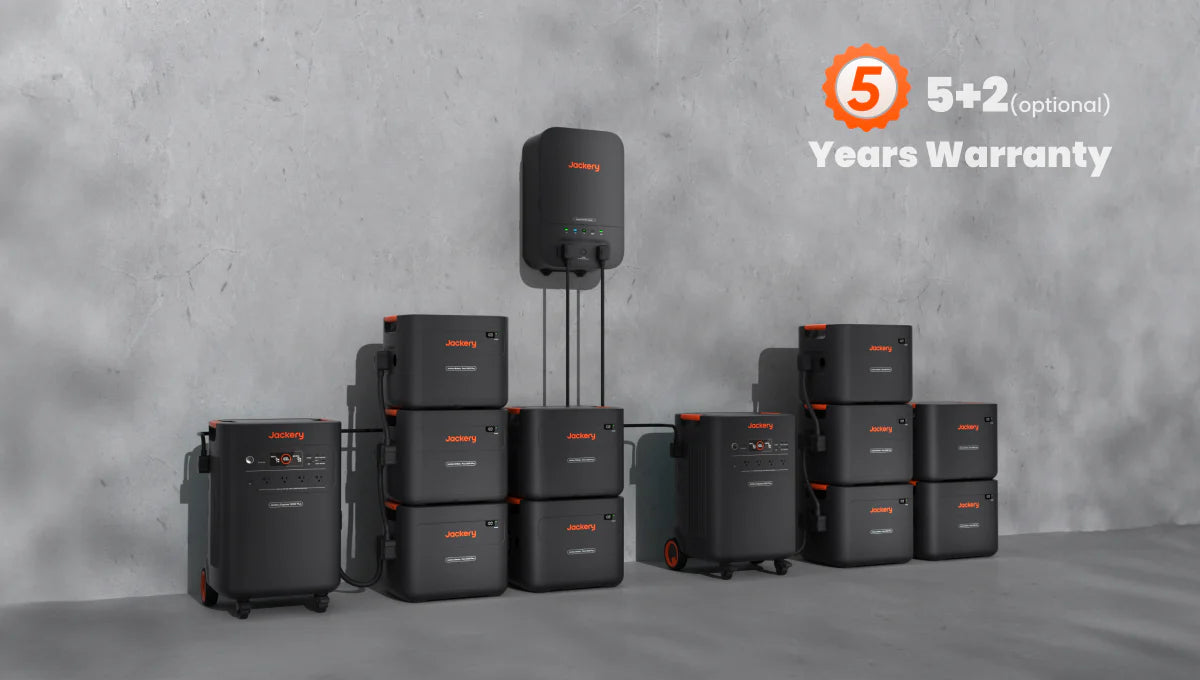

The Explorer 5000 Plus is not just a large portable — it’s a foundation for a scalable backup ecosystem. Customers can pair the station with multiple 5000 Plus Batteries, building a powerhouse that covers multi-day blackouts and full household energy needs.
| Spec | Details |
|---|---|
| Model No. | JBP-5000A (only use with Explorer 5000 Plus) |
| Capacity | 5040Wh (45Ah / 112V DC) |
| Battery Chemistry | LiFePO₄ (Lithium Iron Phosphate) |
| Cycle Life | ~4000 cycles to ≥70% capacity |
| Weight | 81.6 lbs (37 kg) |
| Dimensions | 16.5 × 13.5 × 13.2 in (41.8 × 34.4 × 33.6 cm) |
| Max Short Circuit Current | 2600A / 5ms |
| Ingress Protection | IP20 |
| DC Expansion Port (Input) | 80.5V–126V ⎓ 41A max |
| DC Expansion Port (Output) | 80.5V–126V ⎓ 98A max |
| Charge Temperature | 0°C to 45°C (32°F to 113°F) |
| Discharge Temperature | -15°C to 45°C (5°F to 113°F) |
| Package Includes | Battery Pack 5000 Plus ×1, Expansion Cable ×1, User Manual ×1 |
| Warranty | 3 + 2 Years |
