Short Description

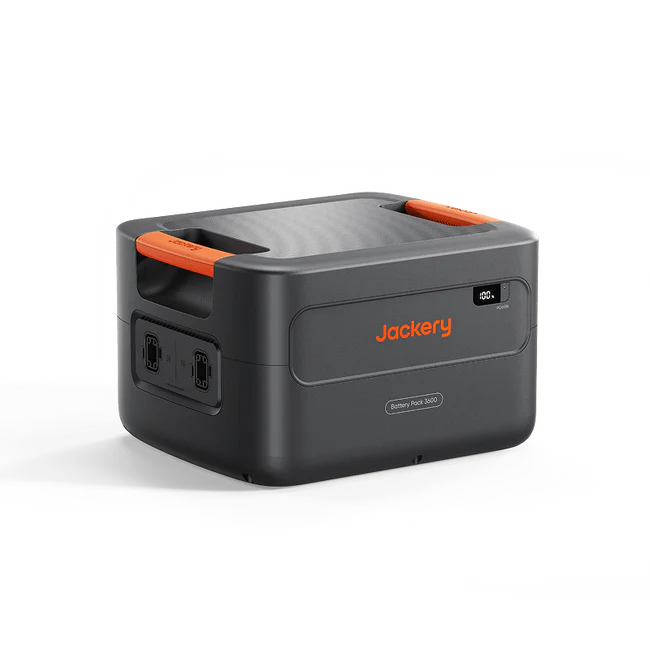

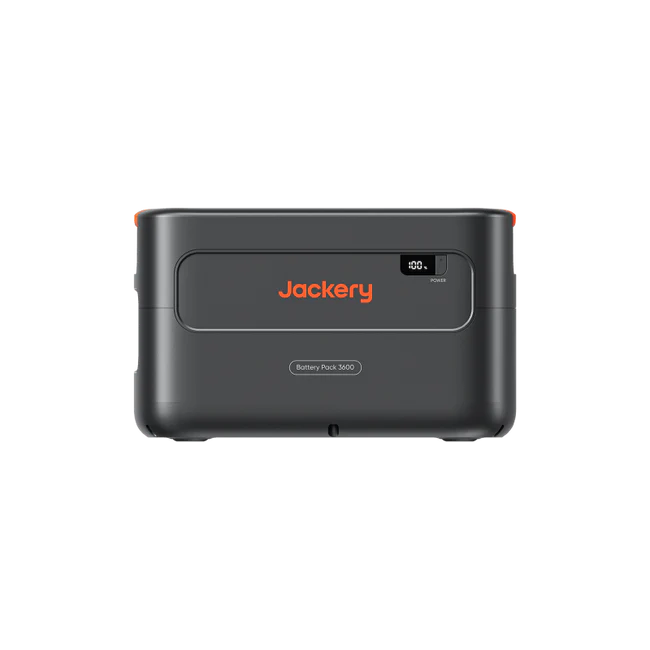

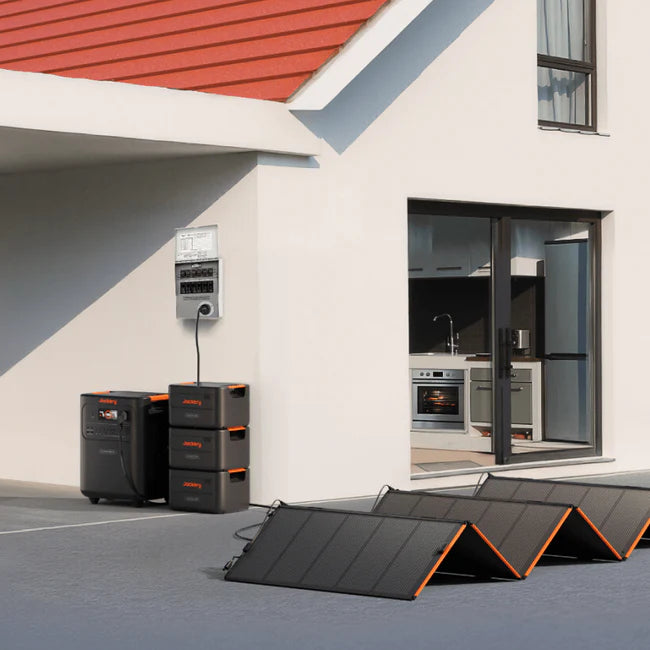

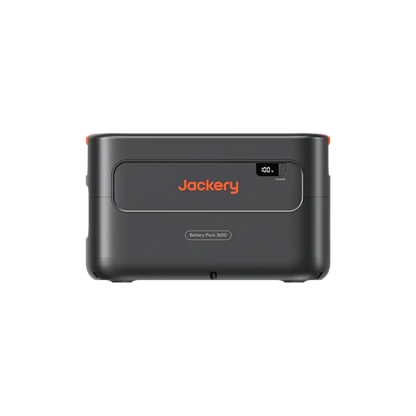

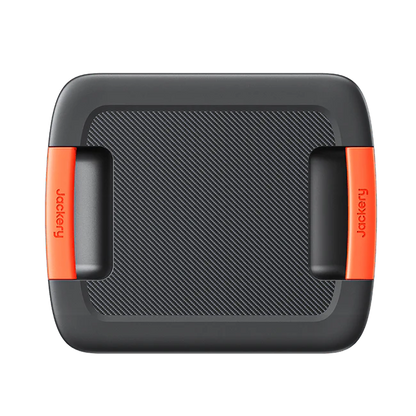

The Jackery Battery Pack 3600 Plus is a modular expansion battery designed for the HomePower 3600 Plus (HP3600). Each pack adds 3.6kWh of storage, enabling homeowners to scale up to 21.6kWh of backup power. Perfect for whole-home resilience, extended blackouts, or serious off-grid setups.
Teaching Note

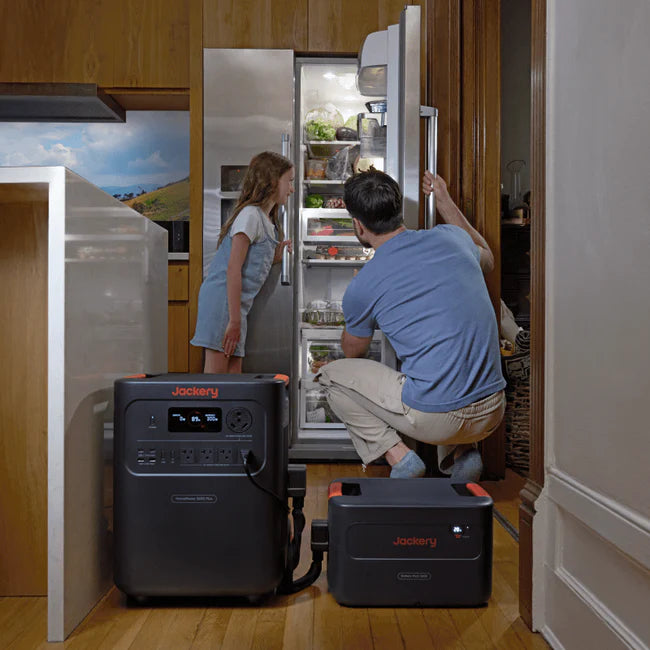

This expansion battery is what transforms the HP3600 from a single backup station into a scalable whole-home system. Customers can start with one battery and add more as their needs grow. It’s ideal for families preparing for long outages or those who want near off-grid independence.
| Spec | Details |
|---|---|
| Model No. | JBP-3600A (use only with HP3600 Plus) |
| Capacity | 3584Wh (80Ah, 44.8V DC) |
| Battery Chemistry | LiFePO₄ (Lithium Iron Phosphate) |
| Cycle Life | ~6000 cycles to ≥70% capacity |
| Weight | 55.1 lbs (25 kg) |

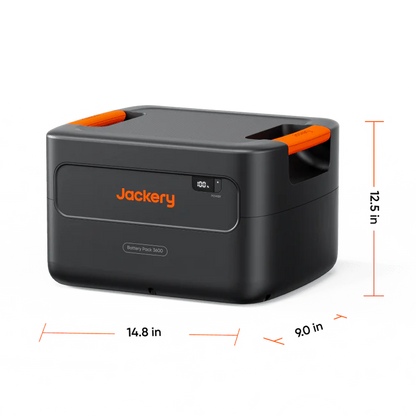

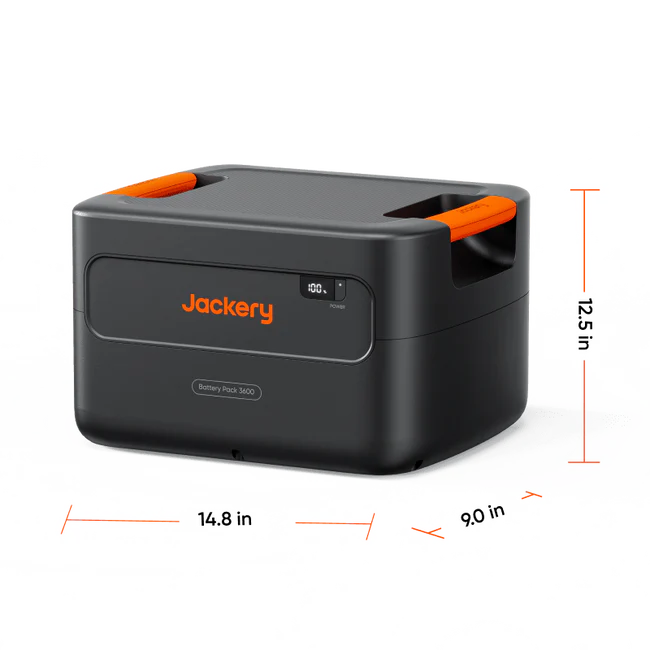

| Dimensions | 14.8 × 12.5 × 9.0 in (37.5 × 31.7 × 22.9 cm) |
| DC Expansion Port (Input) | 36.4V–50.4V ⎓ 60A max |
| DC Expansion Port (Output) | 36.4V–50.4V ⎓ 100A max |
| Charge Temperature | -20°C to 45°C (-4°F to 113°F) |
| Discharge Temperature | -20°C to 45°C (-4°F to 113°F) |
| Package Includes | Battery Pack 3600 ×1, Expansion Cable ×1, User Manual ×1 |
| Warranty | 3 + 2 Years |
