Short Description

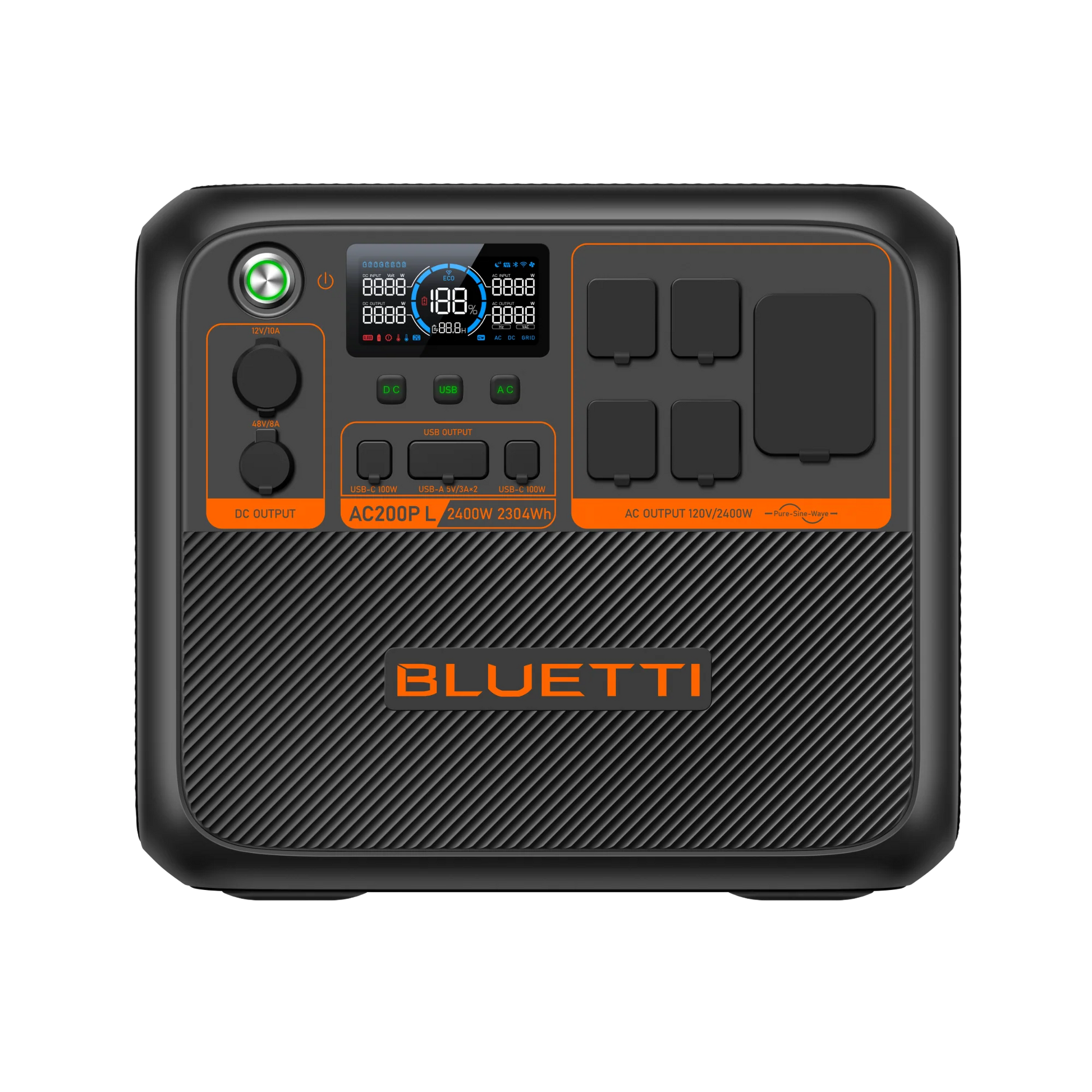

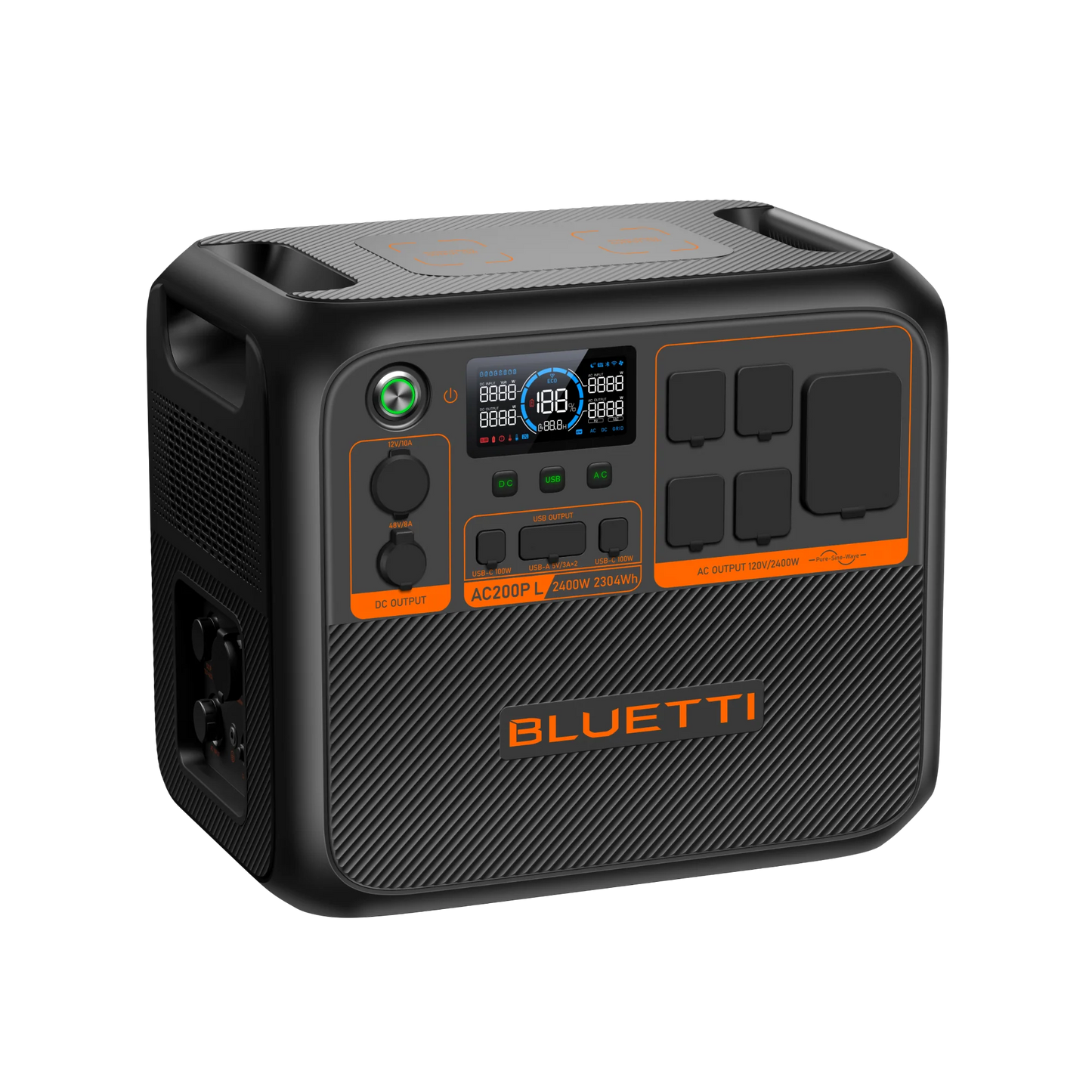

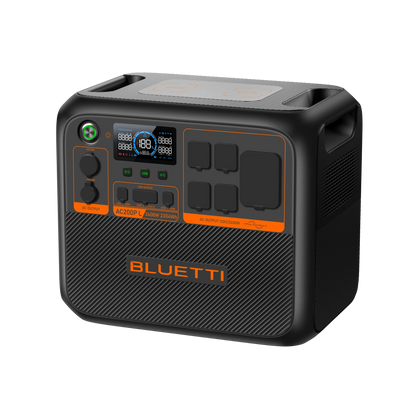

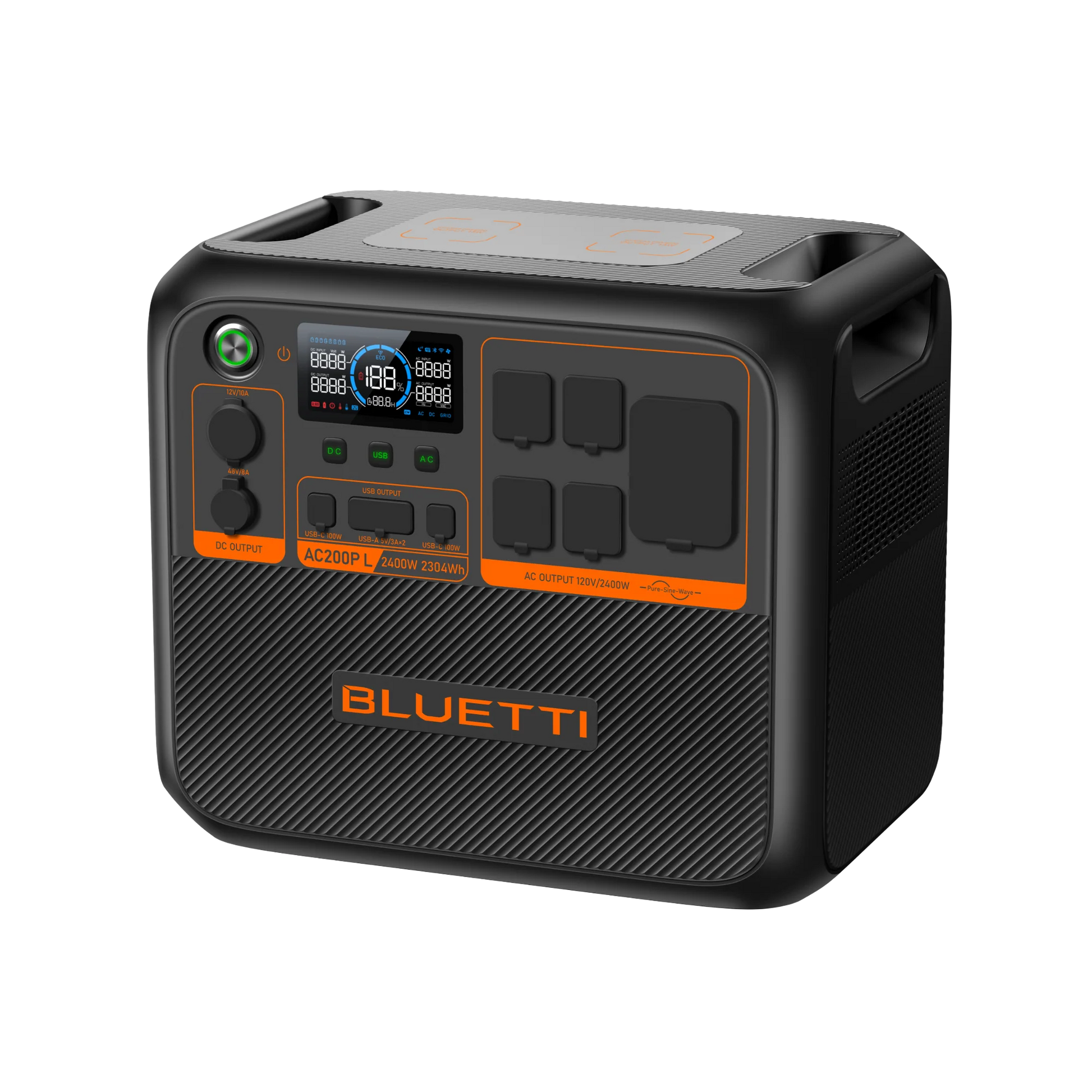

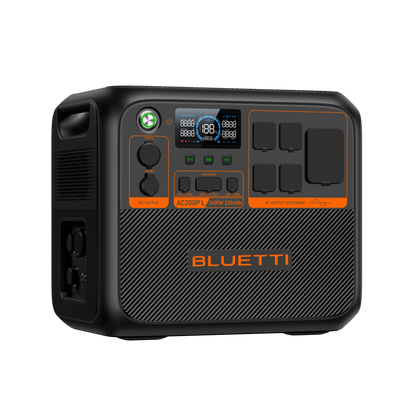

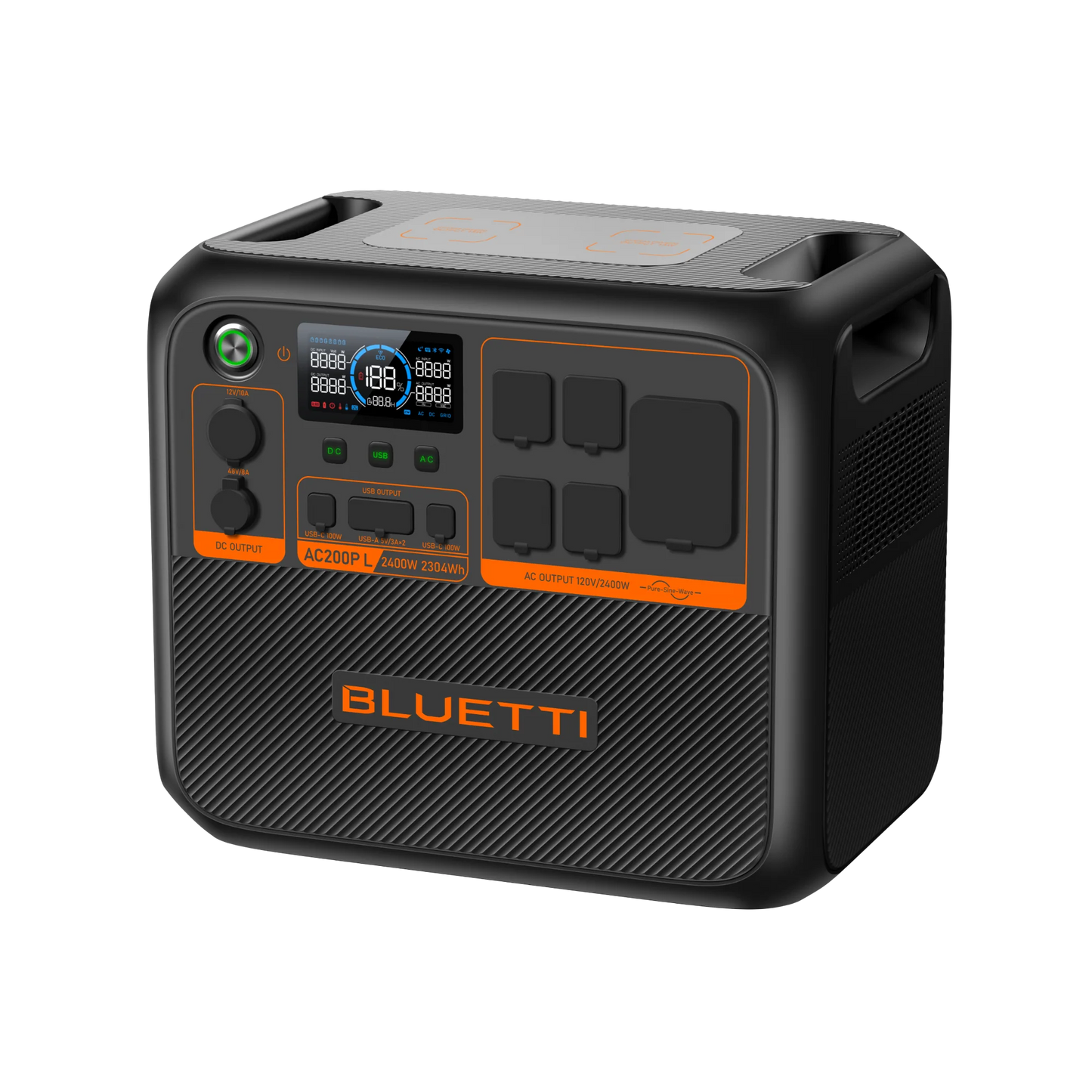

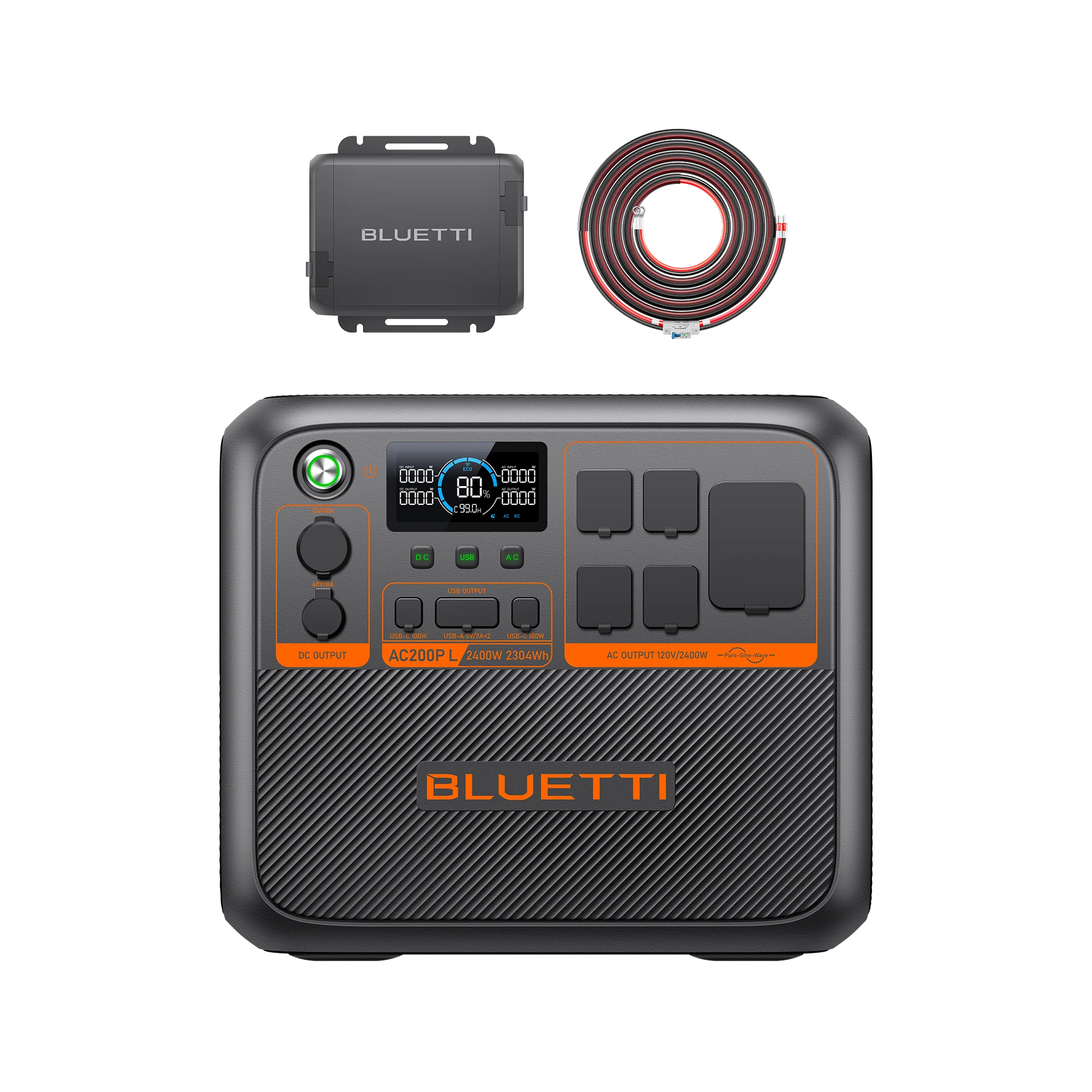

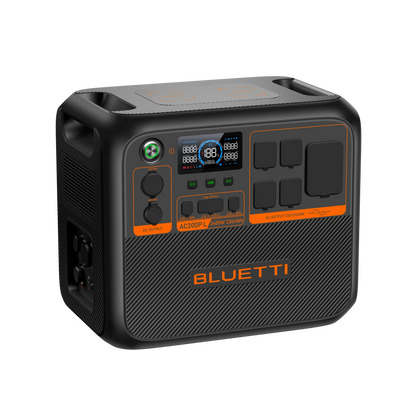

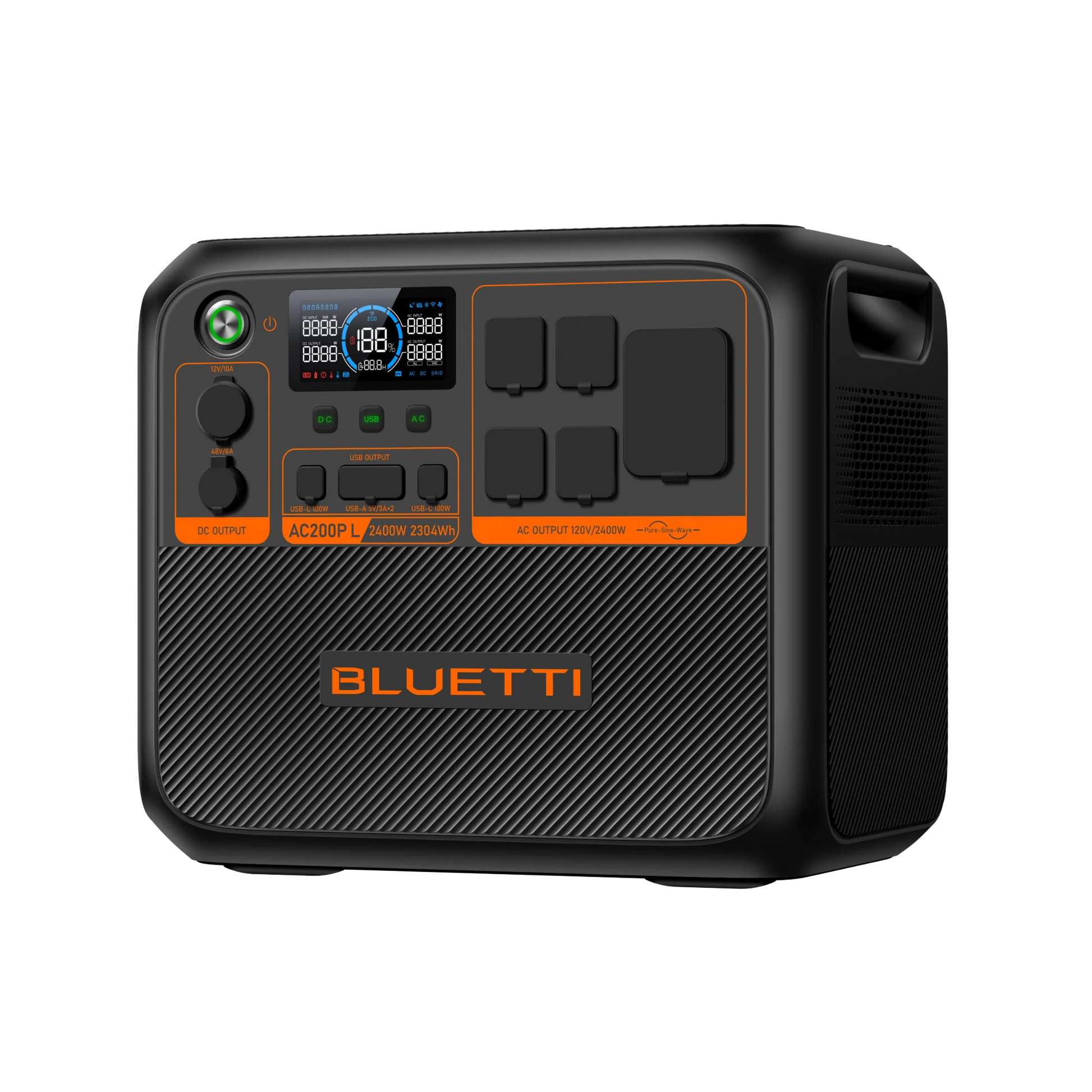

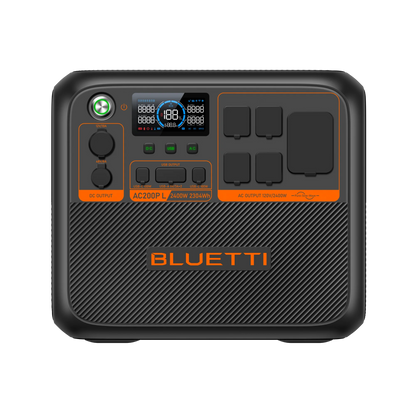

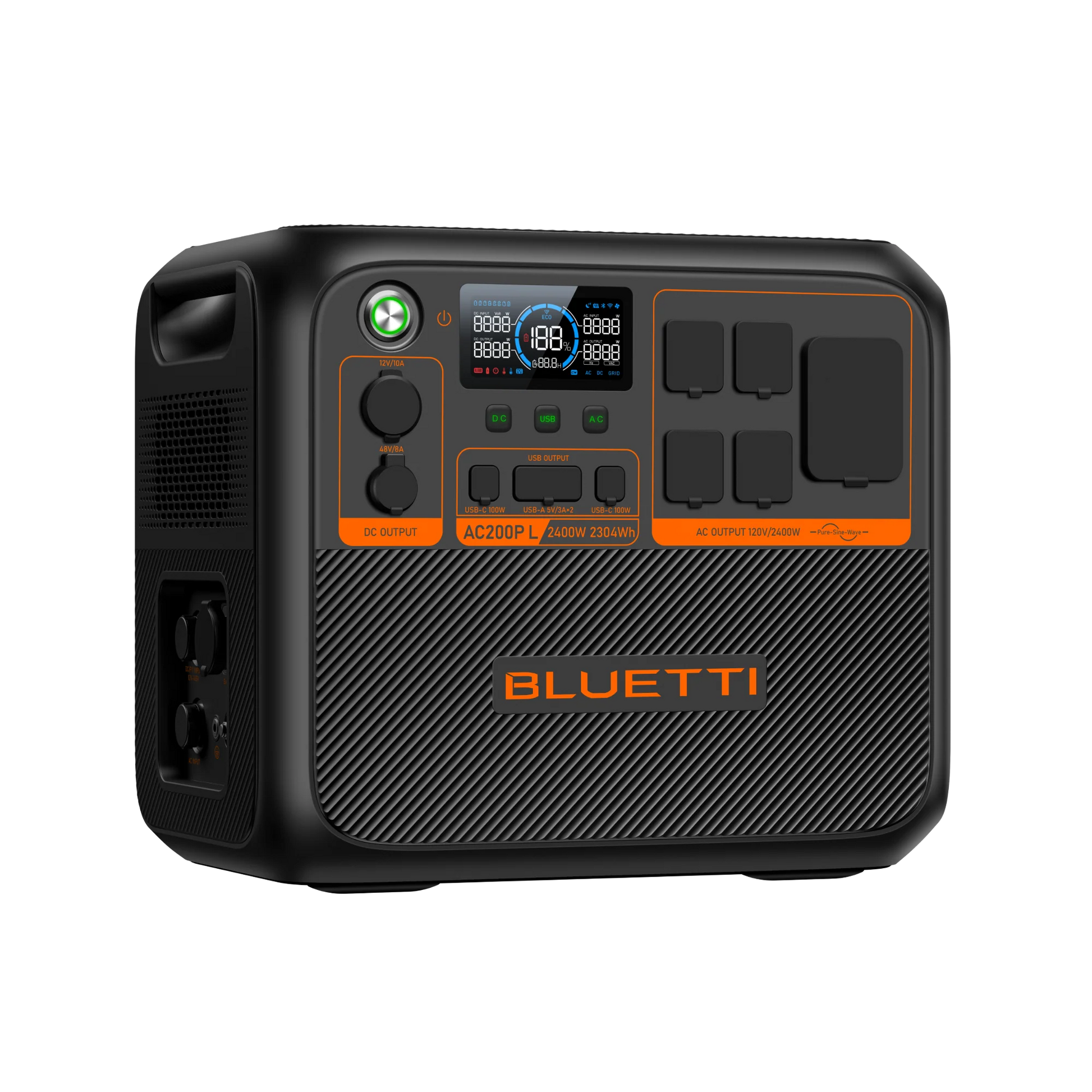

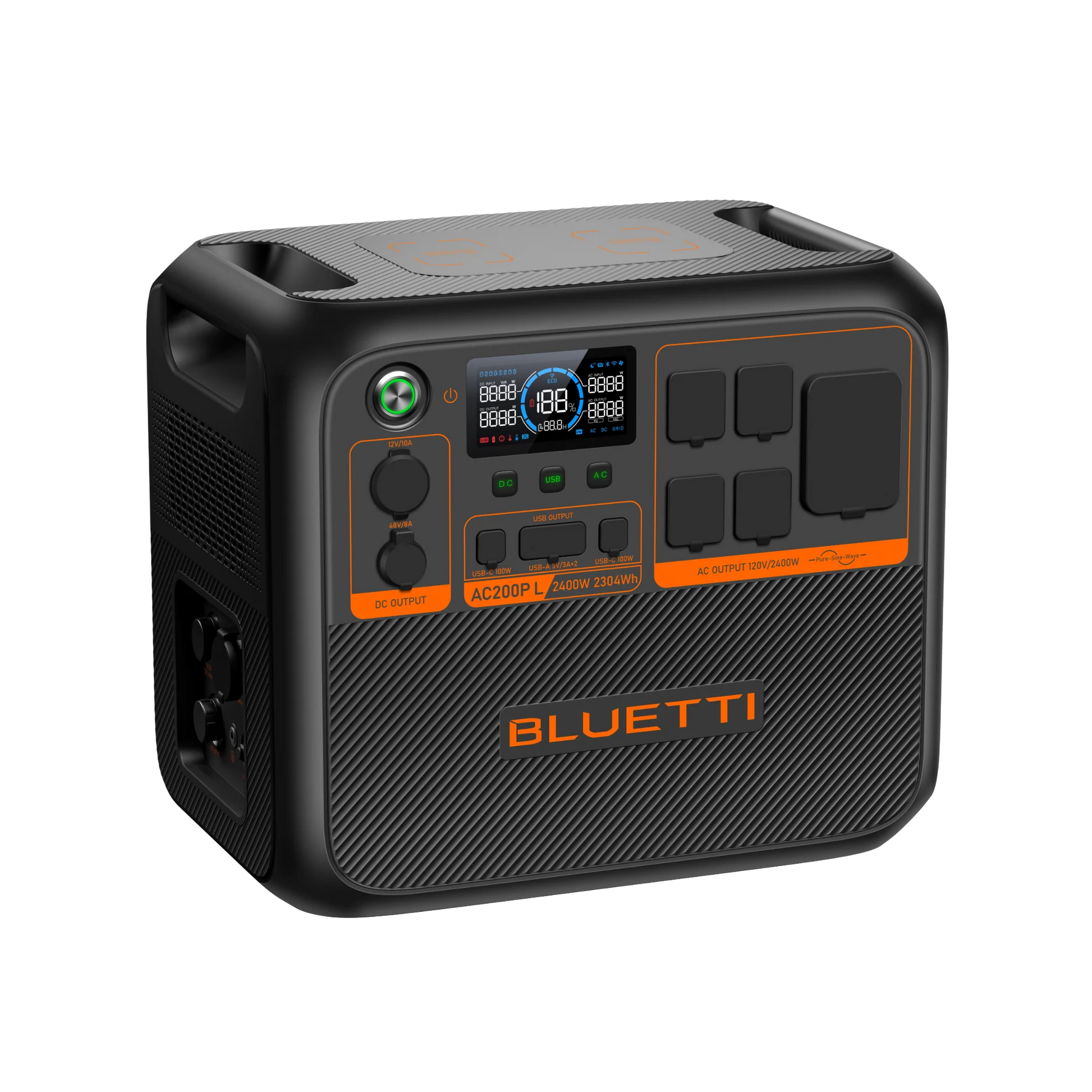

The AC200PL is a heavy-duty portable power station with 2,200W output and a 2,048Wh LiFePO₄ battery. It supports expansion batteries for up to 8,448Wh total capacity — making it one of the most versatile mid-tier systems for home backup, RV, or off-grid living.
Teaching Note
Think of the AC200PL as the “expandable powerhouse”. Out of the box, it’s strong enough to run appliances during outages. With expansion batteries, it can grow into a multi-day backup system without needing a new core unit.
| Spec Details | |
|---|---|
| Battery Capacity | 2,048Wh (base), expandable up to 8,448Wh |
| Output Power | 2,200W continuous / 4,800W surge |
| Battery Type | LiFePO₄ (Lithium Iron Phosphate) |
| Cycle Life | 3,500+ cycles to 80% |
| AC Input (Wall) | Up to 2,400W (Turbo Mode) |

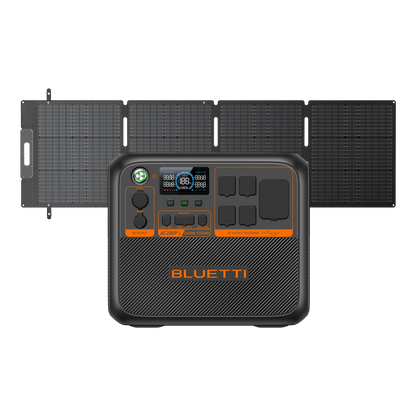

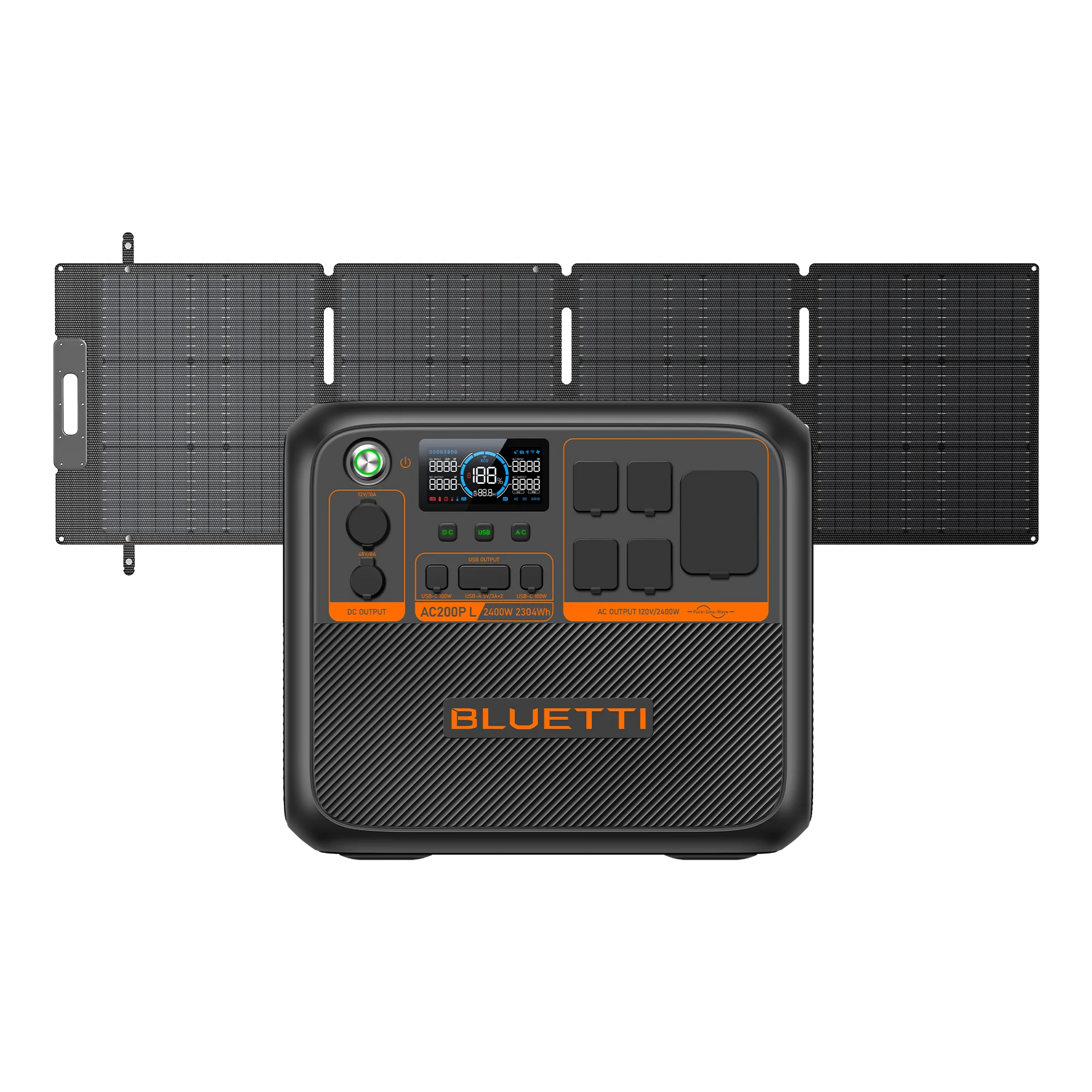

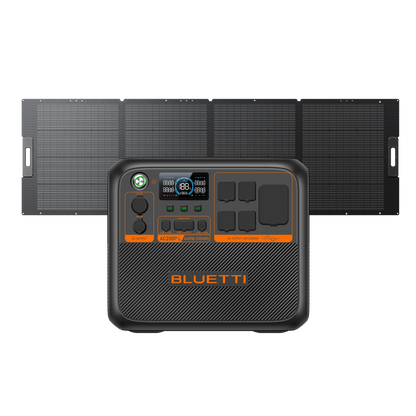

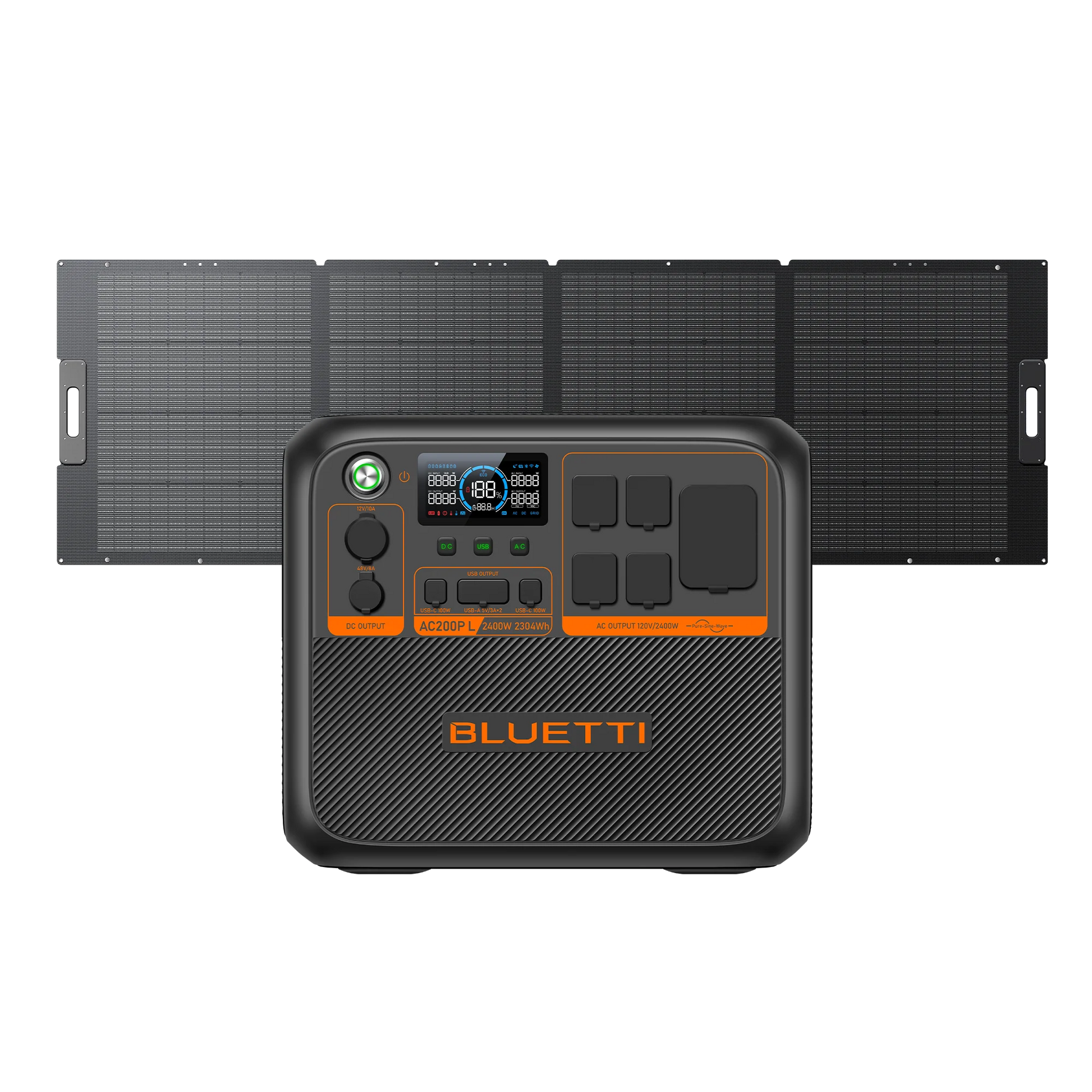

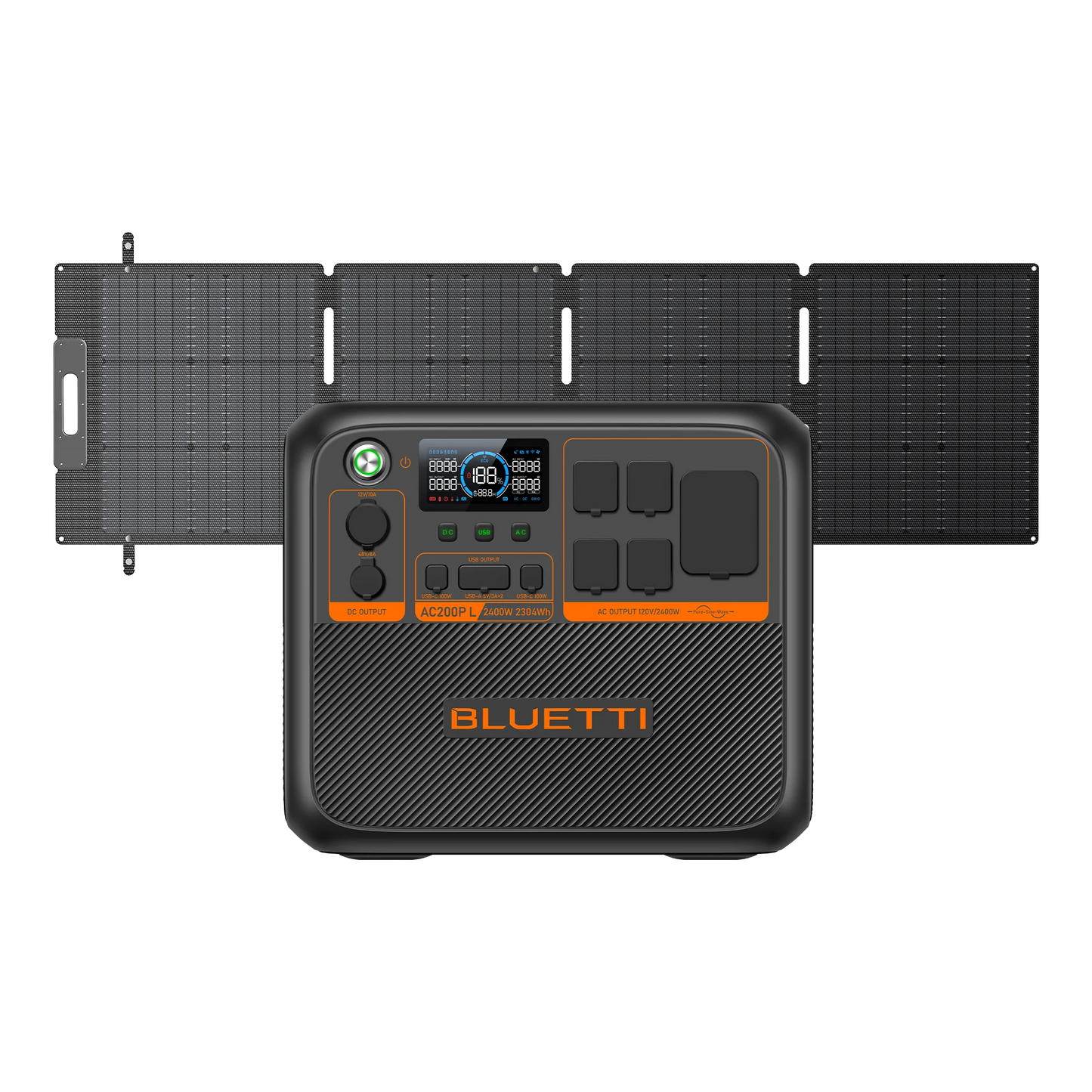

| Solar Input | Max 1,200W (12–150V, 15A) |

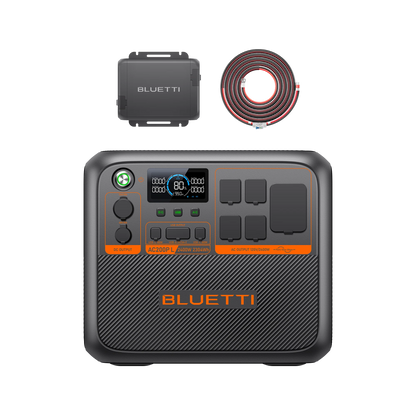

| Expansion Options | ✅ Supports B210P, B230, B300 batteries (up to 8,448Wh) |
| Pass-Through / UPS | ✅ Yes (~20ms switchover, good for home backup) |
| USB Ports | 100W PD, 18W USB-A, 5V/3A ports |
| DC Outputs | 12V/30A RV port, 24V DC, dual 12V car outlets |
| Weight | ~62 lbs (28 kg) |
| Size | ~16.5 × 11 × 15.2 in (42 × 28 × 39 cm) |
| Durability | Rugged housing, UPS-ready, off-grid capable |
